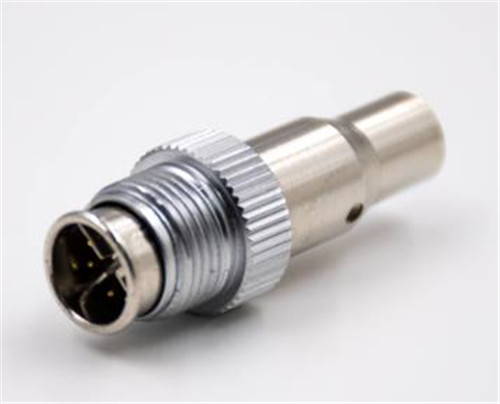

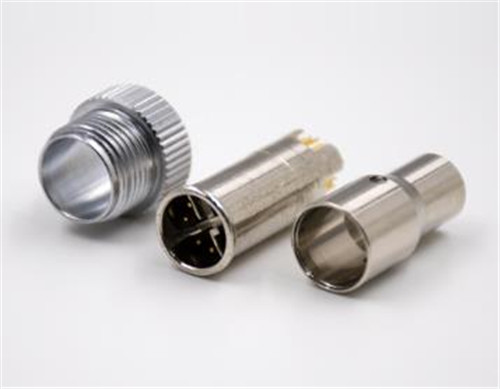

Industrial M12 8pins X-coded crimping terminal connector
Connector Electrical character
IEC 61076-2-109 Connector
Rating voltage: 48V AC/DC
Insulation resistance: >100MΩ
Rating current : 0.5A
Contact resistance ≤5mΩ
Contact Pin: Brass with Gold plating 1u''.
Coupling nut/screw/shell: Brass with nickel plating
Insulation plastic: PA66+GF&TPU
Degree of protection: IP67/IP68
Operating temperature: -25°C ~ +85°C
M12 connector forIndustrial M12 8-X-coded connectormetal round waterproof x coding connector is a Gigabit Ethernet thread connector complying with IEC 61076-2-109. The highest transmission rate can reach 10Gb / s. with the "industry 4.0" strategy, computer technology, communication technology, it technology has penetrated into the field of industrial control, mainly manifested in fieldbus technology, based on PC technology and industrial Ethernet technology. Industrial fieldbus technology, especially one of the widely used Ethernet technology, has brought profound changes to automation technology.

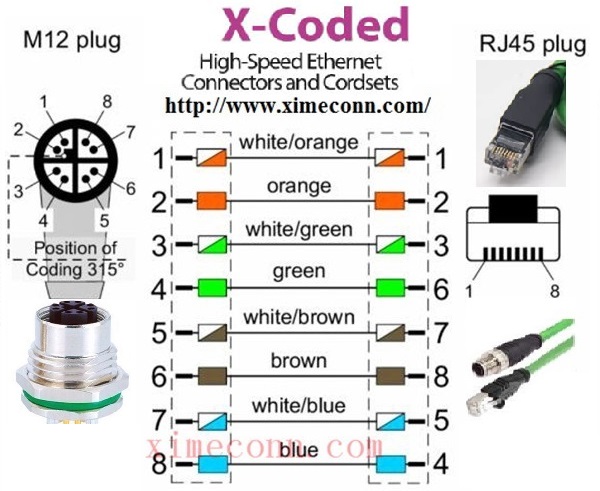

M12 x connector is a Gigabit Ethernet threaded connector complying with IEC 61076-2-109. The highest transmission rate is up to 10Gb / s. The connector has high mechanical and electrical strength and is very suitable for use in harsh industrial environment. In the plug-in state, it is also suitable for IP67 anti pollution water. Excellent 360 ° shielding ensures efficient EMC immunity and secure and reliable connection for trouble free data transmission. Ximeconn has formally integrated the x-coded M12 waterproof plug connector into its wiring manual.
